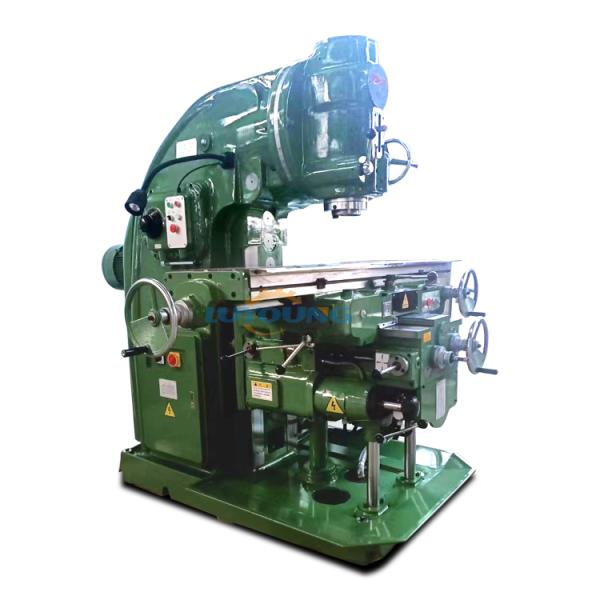

Manual Milling Machine X5040 Kneel Milling Machine

Item		X5040
Size of worktable( mm)		1700X400
Swivelangleof vertical millinghead		±45°
Longitudinal worktabletravel(mm) (manual/auto)		900/880
Horizontalworktabletravel (mm) (manual/auto)		315/300
Vertical worktabletravel(mm) (manual/auto)		385/365
Rapid speed of table(X/Y/Z	) (mm/min)	X2300 Y2300 Z770
Spindle speed step		18
Spindletaper		7:24ISO50
Spindlespeedrange(r/min)		30-1500
Feedrangeof tabletravel		18 Level
Distance between spindle center to vertical guide rail (mm)		400
Distancebetweenspindlenoseandtable(mm)		30-500
Mainmotor power(KW)		11kw
Feedmotor power(KW)		3kw
Motor power of cooling pump(KW)		0.09kw
Overall dimension (L×W × H)(mm)		2556X2159X2298mm
Packaging size(L×W × H)(mm)		2650X2250X2480mm
Net weight(kg)		4250
Gross weight(kg)		4600

Powerful Cutting Capability:
Thanks to its high rigidity and high torque, the X5040 is highly suitable for heavy-duty cutting. It can handle large cutting depths and high feed rates when milling planes and grooves, making it a representative of "great strength."

Strong Versatility and Wide Applicability:
By equipping different milling cutters (such as end mills, face mills, keyway cutters, drills, etc.), it can perform various machining operations:

• Milling planes and step surfaces

• Milling grooves and keyways

• Drilling and boring holes

• Machining gears and splines

• Processing mold cavities

When used with accessories like a dividing head or rotary table, it can machine more complex parts such as spiral grooves and gears.

Intuitive Operation and Easy Maintenance:
The mechanical structure is relatively simple, and the electrical system is not complex (traditional relay control). This makes it very user-friendly for both operators and maintenance personnel, and faults are easy to diagnose and repair.

High Cost-Effectiveness:
As a universal machine tool, its acquisition cost is much lower compared to CNC milling machines. It is a highly economical and practical choice for applications that do not require complex contour machining.
